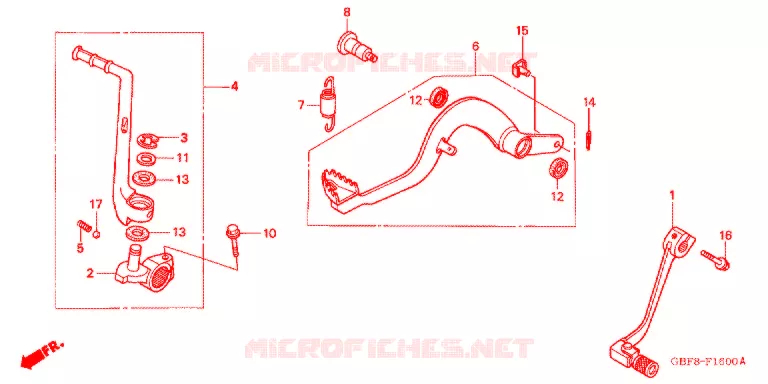

PEDAL FOR HONDA CR 85 R BIG WHEELS 2006

PEDAL

(1) 24700-GBF-830

PEDAL COMP., CHANGE

(2) 28241-GBF-K40

JOINT, KICK ARM

(3) 28293-333-000

CLIP, KICK STARTER ARM

(4) 28300-GBF-K40

ARM ASSY., KICK STARTER

(5) 28333-124-000

SPRING, KICK STARTER STOP
SPRING, KICK STARTER STOPPER

(6) 46510-GBF-J00

PEDAL COMP., BRAKE

(7) 46512-GBF-830

SPRING ASSY., BRAKE PEDAL

(8) 46513-MAC-680

SHAFT, BRAKE PIVOT

(10) 90112-GBF-830

BOLT, FLANGE, 6X22

(11) 90451-168-000

WASHER, SPECIAL

(12) 91251-444-000

DUST SEAL, 15X20X2.5

(13) 91303-GC4-831

DUST SEAL, 13X19 (ARAI)

(14) 94201-20120

PIN, SPLIT, 2.0X12

(15) 95015-54000

PIN D, JOINT

(16) 95701-0602000

BOLT, FLANGE, 6X20

(17) 96211-08000

BALL, STEEL, #8 (1/4)

	Part number	Description	Qty
# 1	24700-GBF-830 24700GBF830 24700GBF830	PEDAL COMP., CHANGE	£16,10
# 2	28241-GBF-K40 28241GBFK40 28241GBFK40	JOINT, KICK ARM	Not available	£0,00
# 3	28293-333-000 28293333000 28293333000	CLIP, KICK STARTER ARM	£3,14
# 4	28300-GBF-K40 28300GBFK40 28300GBFK40	ARM ASSY., KICK STARTER	Not available	£0,00
# 5	28333-124-000 28333124000 28333124000	SPRING, KICK STARTER STOP SPRING, KICK STARTER STOPPER	£2,10
# 6	46510-GBF-J00 46510GBFJ00 46510GBFJ00	PEDAL COMP., BRAKE	Not available	£0,00
# 7	46512-GBF-830 46512GBF830 46512GBF830	SPRING ASSY., BRAKE PEDAL	Contact	£0,00
# 8	46513-MAC-680 46513MAC680 46513MAC680	SHAFT, BRAKE PIVOT	£20,57
# 10	90112-GBF-830 90112GBF830 90112GBF830	BOLT, FLANGE, 6X22	£3,13
# 11	90451-168-000 90451168000 90451168000	WASHER, SPECIAL	Not available	£0,00
# 12	91251-444-000 91251444000 91251444000	DUST SEAL, 15X20X2.5	£7,50
# 13	91303-GC4-831 91303GC4831 91303GC4831	DUST SEAL, 13X19 (ARAI)	Not available	£0,00
# 14	94201-20120 9420120120 9420120120	PIN, SPLIT, 2.0X12	£0,94
# 15	95015-54000 9501554000 9501554000	PIN D, JOINT	£3,50
# 16	95701-0602000 957010602000 957010602000	BOLT, FLANGE, 6X20	£1,19
# 17	96211-08000 9621108000 9621108000	BALL, STEEL, #8 (1/4)	£0,32

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
