REAR BRAKE CALIPER

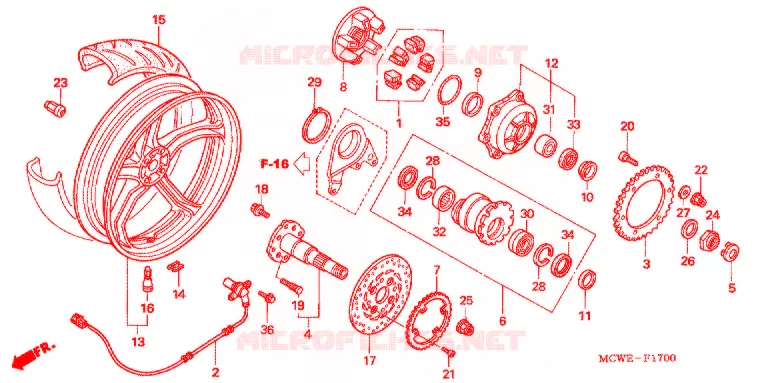

REAR WHEEL FOR HONDA VFR 800 VTEC ABS 2011

FUEL TANK

DAMPER SET, WHEEL

06410-MBG-000 06410MBG000

£41,03

Unit Price Incl. Tax

SENSOR, RR. WHEEL SPEED

38510-MCW-D11 38510MCWD11

£251,58

Unit Price Incl. Tax

SPROCKET, FINAL DRIVEN (4
SPROCKET, FINAL DRIVEN (43T)

41201-MCW-D00 41201MCWD00

£142,63

Unit Price Incl. Tax

AXLE COMP., RR.

42300-MFN-D00 42300MFND00

£376,30

Unit Price Incl. Tax

CAP, RR. AXLE

42303-MT4-000 42303MT4000

£8,64

Unit Price Incl. Tax

HOLDER COMP., BEARING

42500-MCW-D00 42500MCWD00

£316,64

Unit Price Incl. Tax

RING, PULSER (RR.)

42515-MCW-D11 42515MCWD11

£309,73

Unit Price Incl. Tax

FLANGE COMP., FINAL DRIVE
FLANGE COMP., FINAL DRIVEN

42605-MBG-000 42605MBG000

£135,52

Unit Price Incl. Tax

COLLAR, RR. AXLE DISTANCE

42621-MT4-000 42621MT4000

£15,64

Unit Price Incl. Tax

COLLAR, RR. AXLE SIDE

42622-MT4-000 42622MT4000

£15,38

Unit Price Incl. Tax

COLLAR, RR. AXLE

42623-MBG-000 42623MBG000

£22,54

Unit Price Incl. Tax

HUB ASSY., SPROCKET

42630-MCW-H50 42630MCWH50

£192,37

Unit Price Incl. Tax

WHEEL SUB ASSY., RR. *TYP
WHEEL SUB ASSY., RR. *TYPE4* *TYPE4*

42650-MCW-D00ZD 42650MCWD00ZD

£649,10

Unit Price Incl. Tax

WHEEL SUB ASSY., RR. *TYP
WHEEL SUB ASSY., RR. *TYPE5* *NHA66B*

42650-MCW-D00ZE 42650MCWD00ZE

£725,10

Unit Price Incl. Tax

OBSOLETE
WEIGHT, BALANCE (10G)

42704-MCF-D60 42704MCFD60

Contact

OBSOLETE
WEIGHT, BALANCE (20G)

42705-MCF-D60 42705MCFD60

Contact

OBSOLETE
WEIGHT, BALANCE (30G)

42706-MCF-D60 42706MCFD60

Contact

TIRE, RR. (METZELER) (180/55ZR17 M/C)

42711-MCW-D03 42711MCWD03

Contact

TIRE, RR. (BRIDGESTONE) (180/55ZR17 M/C)

42711-MCW-D04 42711MCWD04

Contact

TIRE, RR. (DUNLOP) (180/55ZR17 M/C)

42711-MCW-D05 42711MCWD05

Contact

VALVE, RIM (PIRELLI)

42753-MCF-008 42753MCF008

£11,08

Unit Price Incl. Tax

VALVE, RIM (WONDER)

42753-ML7-003

42753-KBS-901

£2,16

Unit Price Incl. Tax

VALVE, RIM (DUNLOP)

42753-ML7-004 42753ML7004

£11,60

Unit Price Incl. Tax

OBSOLETE
DISK, RR. BRAKE

43251-MCW-D11 43251MCWD11

Contact

BOLT, FLANGE, 8X19

90102-MW4-000 90102MW4000

£3,22

Unit Price Incl. Tax

BOLT, WHEEL (THAI MEIRA)

90113-SA0-025

Contact

BOLT, 10X30

90121-MCF-000 90121MCF000

£4,66

Unit Price Incl. Tax

BOLT, TORX, 5X10

90131-KPB-751 90131KPB751

£4,09

Unit Price Incl. Tax

NUT, U, 10MM

90304-KAE-871 90304KAE871

£5,21

Unit Price Incl. Tax

NUT, WHEEL (OHASHI)

90304-SF0-751

90304-SWE-T91

£6,36

Unit Price Incl. Tax

NUT, LOCK, 35MM

90306-MFN-D00 90306MFND00

£25,08

Unit Price Incl. Tax

NUT, FLANGE (SELF-LOCK) (

90309-KF0-003

90309-428-731

£7,58

Unit Price Incl. Tax

WASHER, CONICAL SPRING, 3
WASHER, CONICAL SPRING, 35

90501-MBG-003 90501MBG003

£7,66

Unit Price Incl. Tax

WASHER, 10MM

90502-MCF-000 90502MCF000

£4,22

Unit Price Incl. Tax

CIRCLIP, INTERNAL, 62MM

90651-ML0-731 90651ML0731

£6,64

Unit Price Incl. Tax

CIRCLIP, EXTERNAL, 75MM

90652-ML0-731 90652ML0731

£9,80

Unit Price Incl. Tax

BEARING, RADIAL BALL, 690
BEARING, RADIAL BALL, 6908LU

91061-ML0-731 91061ML0731

£51,38

Unit Price Incl. Tax

BEARING, RADIAL BALL, 35X
BEARING, RADIAL BALL, 35X55X10

91061-MT4-003 91061MT4003

£51,38

Unit Price Incl. Tax

BEARING, RR. AXLE NEEDLE

91062-MR7-003 91062MR7003

£75,49

Unit Price Incl. Tax

DUST SEAL, 45X55X5 (ARAI)

91258-ML7-003 91258ML7003

£9,56

Unit Price Incl. Tax

DUST SEAL, 50X62X5

91284-MR7-003 91284MR7003

£10,96

Unit Price Incl. Tax

O-RING, SPROCKET HUB

91352-MN8-003 91352MN8003

£3,66

Unit Price Incl. Tax

BOLT, FLANGE, 6X16

96001-0601600 960010601600

£1,45

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the REAR WHEEL of your Honda VFR 800 VTEC ABS of VFR. Let us know if you have any questions.
