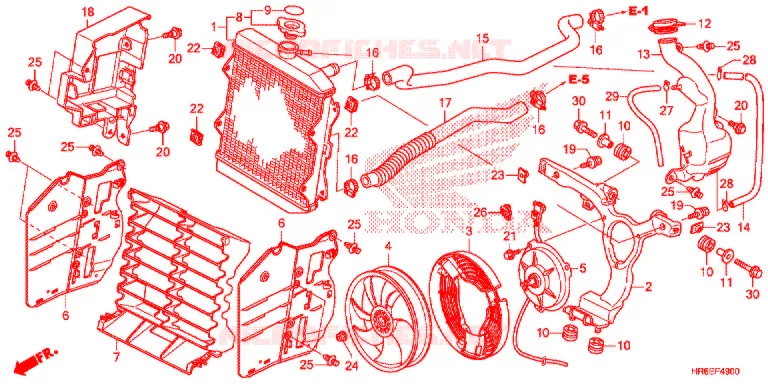

RADIATOR FOR HONDA FOURTRAX 500 RUBICON DCT EPS 2018

SEAT - CARRIER

RADIATOR COMP. (T.RAD) RADIATOR COMP. (T.RAD)
--- RADIATEUR COMP. (T.RAD)

19010-HR3-A21 19010HR3A21

£320,89

Unit Price Incl. Tax

STAY, COOLING FAN

19015-HR3-A20 19015HR3A20

£57,90

Unit Price Incl. Tax

FAN COMP., COOLING

19020-HN2-003 19020HN2003

£102,54

Unit Price Incl. Tax

MOTOR ASSY., FAN
MOTOR ASSY., COOLING FAN

19030-HR3-A21 19030HR3A21

£182,64

Unit Price Incl. Tax

COVER, RADIATOR GRILLE

19033-HR3-A20 19033HR3A20

£16,26

Unit Price Incl. Tax

COVER, RADIATOR GRILLE CE COVER, RADIATOR GRILLE CE
--- COUVERCLE, CENTRE CALANDRERADIATEUR

19034-HR3-A20 19034HR3A20

£81,00

Unit Price Incl. Tax

CAP COMP., RADIATOR (T.RA
CAP COMP., RADIATOR

19037-GEE-710 19037GEE710

£46,46

Unit Price Incl. Tax

LABEL, RADIATOR CAP

19046-PAA-A00 19046PAAA00

£4,63

Unit Price Incl. Tax

RUBBER, RADIATOR MOUNTING

19051-KA3-830 19051KA3830

£4,84

Unit Price Incl. Tax

COLLAR, RADIATOR MOUNTING

19052-MGH-640 19052MGH640

£4,38

Unit Price Incl. Tax

CAP, RESERVE TANK

19104-MB0-700 19104MB0700

£10,80

Unit Price Incl. Tax

TANK, RADIATOR RESERVE

19110-HR3-A20 19110HR3A20

£85,79

Unit Price Incl. Tax

TUBE, RADIATOR RESERVE

19111-HR3-A20 19111HR3A20

£49,49

Unit Price Incl. Tax

HOSE, WATER UPPER

19501-HR3-A20 19501HR3A20

£20,38

Unit Price Incl. Tax

BAND, WATER HOSE (27MM)

19503-HN2-A60 19503HN2A60

£3,26

Unit Price Incl. Tax

HOSE, WATER LOWER

19503-HR3-A70 19503HR3A70

£29,58

Unit Price Incl. Tax

HOLDER, EPS ECU HOLDER, EPS ECU
--- SUPPORT, ECU EPS

35620-HR3-A70 35620HR3A70

£24,66

Unit Price Incl. Tax

BOLT-WASHER, 6X15

90107-HN8-003 90107HN8003

£4,09

Unit Price Incl. Tax

BOLT, FLANGE, 6MM

90111-162-000 90111162000

£4,45

Unit Price Incl. Tax

BOLT, FLANGE, 5X10
BOLT, FLANGE, 5MM

90196-MBB-003 90196MBB003

£2,84

Unit Price Incl. Tax

NUT, CLIP, 6MM

90201-KPR-901 90201KPR901

£4,72

Unit Price Incl. Tax

NUT, SPECIAL, 6X7

90303-HA0-680 90303HA0680

£4,72

Unit Price Incl. Tax

NUT, SERRATE, 5MM

90315-MK3-003 90315MK3003

£4,12

Unit Price Incl. Tax

CLIP, MUDGUARD

90653-HC4-900 90653HC4900

£0,74

Unit Price Incl. Tax

CLIP, COUPLER (DARK BLUE) CLIP, COUPLER (DARK BLUE)
--- CLIP D'ACCOUPLEMENT (BLEU FONCE)

91535-STK-003 91535STK003

£10,51

Unit Price Incl. Tax

CLIP, TUBE (B8)

95002-02080 9500202080

£1,07

Unit Price Incl. Tax

CLIP, TUBE (B10)

95002-02100 9500202100

£1,19

Unit Price Incl. Tax

TUBE, VINYL, 5X8X230 (950 TUBE, VINYL, 5X8X230 (950
--- TUBE VINYLE, 5X8X230

95003-1002310 950031002310

£45,98

Unit Price Incl. Tax

BOLT, FLANGE, 6X22

95701-0602208 957010602208

£1,45

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

All the genuine spare parts for: FOURTRAX Honda 500 2018

FOURTRAX 500 RUBICON DCT EPS

Honda FOURTRAX

Displacement: 500 cc
Year: 2018
Model code TRX500FA6J
Color: R232

Australia

Add to my garage

The Honda FourTrax Rubicon is a premium ATV. There are a great selection of Rubicon models with a wide range of features. The DELUXE model have the paint color applied over the bodywork—a nice touch that helps deflect superficial scratches and keep your ATV looking sharp longer. Every Rubicon uses the same 500-class engine—tough, proven and efficient. You get to choose between two transmission options: a rugged conventional-type ATV gearbox that makes the Rubicon the only manual-shift ATV with Independent Rear Suspension on the market, and our revolutionary automatic dual-clutch transmission with a smooth shift map and featuring strong steel-gear internals.
