CRANKSHAFT

GEARBOX FOR HONDA XLR 125 1996

GEARSHIFT DRUM - GEARSHIFT FORK

PLATE, BEARING SETTING

11108-KCN-000 11108KCN000

Contact

MAINSHAFT, TRANSMISSION (13T)

23211-KCN-000 23211KCN000

Contact

COUNTERSHAFT, TRANSMISSIO
COUNTERSHAFT, TRANSMISSION

23221-KCN-000 23221KCN000

Contact

GEAR, COUNTERSHAFT LOW (3
GEAR, COUNTERSHAFT LOW (36T)

23426-KCN-000 23426KCN000

Contact

COLLAR, COUNTERSHAFT LOW
COLLAR, COUNTERSHAFT LOW GEAR

23427-439-000 23427439000

Contact

BUSH, 20MM

23431-KA2-000 23431KA2000

Contact

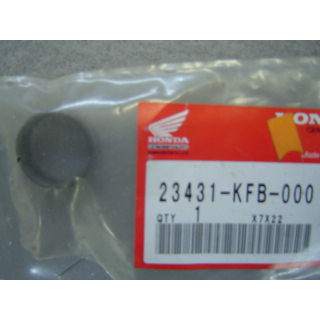

BUSH, 20MM

23431-KFB-000 23431KFB000

Contact

GEAR, MAINSHAFT SECOND (1
GEAR, MAINSHAFT SECOND (18T)

23441-KCN-000 23441KCN000

Contact

GEAR, COUNTERSHAFT SECOND
GEAR, COUNTERSHAFT SECOND (31T)

23451-KCN-000 23451KCN000

Contact

BUSH, 20X23X9

23452-KW1-900 23452KW1900

£11,63

Unit Price Incl. Tax

GEAR, MAINSHAFT THIRD (19T)

23461-KCN-000 23461KCN000

Contact

GEAR, COUNTERSHAFT THIRD
GEAR, COUNTERSHAFT THIRD (24T)

23471-KCN-000 23471KCN000

Contact

GEAR, MAINSHAFT FOURTH (2
GEAR, MAINSHAFT FOURTH (22T)

23481-KCN-000 23481KCN000

Contact

GEAR, COUNTERSHAFT FOURTH
GEAR, COUNTERSHAFT FOURTH (22T)

23491-KCN-000 23491KCN000

Contact

GEAR, MAINSHAFT FIFTH (31T)

23501-KCN-000 23501KCN000

Contact

GEAR, C-5

23511-KCM-000

23511-KCN-010

£88,43

Unit Price Incl. Tax

SPROCKET, DRIVE (17T)

23801-KCM-000 23801KCM000

£33,62

Unit Price Incl. Tax

PLATE A2, FIXING

23811-KR3-600 23811KR3600

£6,08

Unit Price Incl. Tax

COLLAR, 16.5MM

23911-KCN-000 23911KCN000

Contact

OBSOLETE
BOLT, SOCKET, 6X16

90001-KN6-930 90001KN6930

Contact

WASHER, THRUST, 15MM

90451-107-000 90451107000

£2,30

Unit Price Incl. Tax

WASHER, THRUST, 15MM

90451-365-000 90451365000

£3,01

Unit Price Incl. Tax

WASHER, THRUST, 16.5MM

90452-437-000 90452437000

£3,91

Unit Price Incl. Tax

WASHER, THRUST, 20MM

90454-107-000 90454107000

£2,21

Unit Price Incl. Tax

WASHER, SPLINE 20M

90455-107-000

90455-KR1-760

£5,08

Unit Price Incl. Tax

SET RING, 20MM

90605-200-000 90605200000

£5,16

Unit Price Incl. Tax

BEARING, RADIAL BALL, 20X
BEARING, RADIAL BALL, 20X55X11

91005-KCN-003 91005KCN003

£24,89

Unit Price Incl. Tax

OBSOLETE
BEARING, RADIAL BALL, 6202U

91015-KK6-003 91015KK6003

Contact

OIL SEAL, 20X34X7 (ARAI)

91201-030-033 91201030033

£3,65

Unit Price Incl. Tax

BOLT, HEX., 6X10

92101-060100A 92101060100A

BEARING, RADIAL BALL, 620
BEARING, RADIAL BALL, 6204

96100-6204000 961006204000

£16,39

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the GEARBOX of your Honda XLR 125 of XL. Let us know if you have any questions.

All the Honda 125 XL 1996 genuine spare parts
