Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

BATTERY

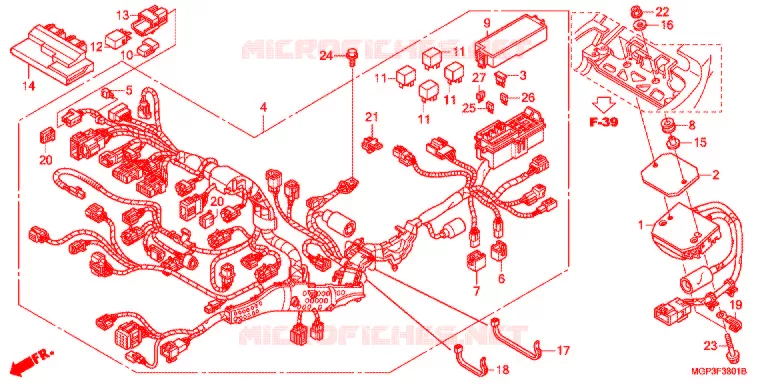

WIRE HARNESS FOR HONDA CBR 1000 RR ABS TRICOLOUR 2013

SUB HARNESS

WIRE HARNESS Honda MOTO 1000 CBR 2013 CBR1000RAD
1
RECTIFIER ASSY., REGULATO
RECTIFIER ASSY., REGULATOR

31600-MFL-D01   31600MFLD01

31600MFLD01

Unit Price Incl. Tax

2
SPACER, REGULATOR RECTIFI
SPACER, REGULATOR RECTIFIER

31605-MCR-D00   31605MCRD00

31605MCRD00

Unit Price Incl. Tax

3
DIODE ASSY., THREE WAY (S<br />DIODE ASSY., THREE WAY (SUMITOMO)
DIODE ASSY., THREE WAY (S
DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601   31730MAS601

31730MAS601

Unit Price Incl. Tax

4
HARNESS, WIRE

32100-MGP-D10   32100MGPD10

32100MGPD10
Contact
5
CONNECTOR, DIODE (2P)(3A)

32146-S84-003   32146S84003

32146S84003

Unit Price Incl. Tax

6
CAP, DUMMY (4P) (RED)

32606-GEV-761   32606GEV761

32606GEV761

Unit Price Incl. Tax

7
CAP, DUMMY (6P) (NATURAL)
CAP, DUMMY (6P)

32606-MEL-D01   32606MELD01

32606MELD01

Unit Price Incl. Tax

8
GROMMET A, TUBE

36037-657-000   36037657000

36037657000

Unit Price Incl. Tax

9
COVER, UPPER
COVER, UPPER

38252-MFJ-D01   38252MFJD01

38252MFJD01

Unit Price Incl. Tax

10
SUSPENSION, WINKER RELAY

38306-KJ6-741   38306KJ6741

38306KJ6741
Contact
11
RELAY COMP., POWER (MICRO
RELAY COMP., POWER (MICRO

38501-MEL-003  

38501-MKP-DN1
 38501MEL003

Unit Price Incl. Tax

12
RELAY COMP., POWER
RELAY COMP., POWER (MICRO ISO 4P)

38502-MGP-D01   38502MGPD01

38502MGPD01

Unit Price Incl. Tax

14
PGM-FI UNIT

38770-MGP-D01   38770MGPD01

38770MGPD01
Contact
15
COLLAR, RR. EX. PROTECTOR

50609-MFF-D00   50609MFFD00

50609MFFD00

Unit Price Incl. Tax

16
WASHER, 18MM

90482-567-000  

90581-701-000
 90482567000

Unit Price Incl. Tax

17
BAND, WIRE HARNESS

90620-SB2-003   90620SB2003

90620SB2003

Unit Price Incl. Tax

18
BAND, WIRE, 165MM (BLACK)<br />BAND, WIRE
BAND, WIRE, 165MM (BLACK)
BAND, WIRE

90651-KV6-003   90651KV6003

90651KV6003

Unit Price Incl. Tax

19
CLIP, 2X70

91413-679-000   91413679000

91413679000

Unit Price Incl. Tax

20
HOLDER, BRACKET (RED)

91554-SM4-003   91554SM4003

91554SM4003

Unit Price Incl. Tax

21
CLIP, COUPLER (DARK GREEN)
CLIP, COUPLER (DARK GREEN)

91565-S0X-003   91565S0X003

91565S0X003

Unit Price Incl. Tax

22
NUT, FLANGE, 6MM

94050-06000   9405006000

9405006000

Unit Price Incl. Tax

23
BOLT, FLANGE, 6X35
BOLT, FLANGE, 6X35

95701-0603500   957010603500

957010603500

Unit Price Incl. Tax

24
BOLT, FLANGE, 6X12

96300-0601200   963000601200

963000601200

Unit Price Incl. Tax

25
FUSE, MINI (10A)

98200-41000   9820041000

9820041000

Unit Price Incl. Tax

26
FUSE, MINI (20A)
FUSE, MINI (20A)

98200-42000   9820042000

9820042000

Unit Price Incl. Tax

27
FUSE, MINI (30A)
FUSE, MINI (30A)

98200-43000   9820043000

9820043000

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Honda 2013 CBR 1000 RR ABS TRICOLOUR
